Products > Solar Controller > > MPPT Solar Controller

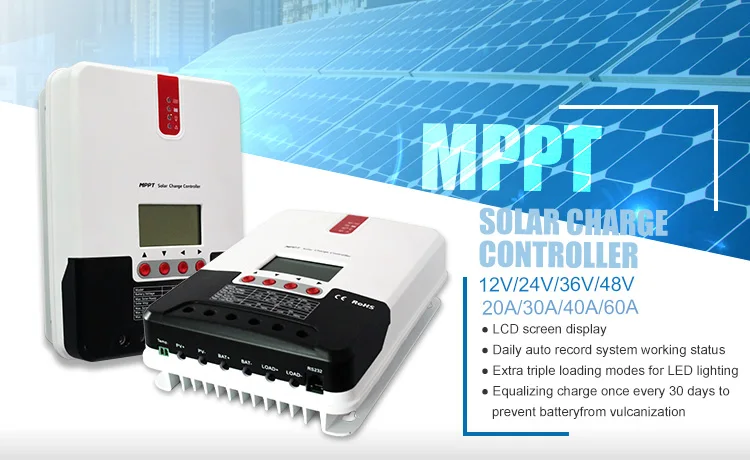

Product name : MPPT Solar Controller

Product No. : MPPT Solar Controller

←[Previous Product]

Online Inquiry Email Us

Details:

12V 24V Auto 20a mppt charge controller

Product Description

Parameter	Value
Model	CM2420	CM2430	CM2440
System voltage	12V/24V Auto
No-load loss	0.7 W to 1.2W
Battery voltage	9 to 35
Max. solar input voltage	100V (25°C), 90V (-25°C)
Max. power point voltage range	Battery voltage +2V to 75V
Rated charging current	20A	30A	40A
Rated load current	20A
Max. capacitive load capacity	10000uF
Max. photovoltaic system input power	260W/ 12V	400W/ 12V	550W/ 12V
	520W/ 24V	800W/ 24V	1100W/ 24V
Conversion efficiency	≤ 98%
MPPT tracking efficiency	> 99%
Temperature compensation factor	-3.0mv/ °C/ 2V (default)
Operating temperature	-35°C to +45℃
Protection degree	IP32
Weight	1.4kg	2kg	2kg
Communication method	RS232
Altitude	≤ 3000m
Product dimensions	21015159.5mm	23817372.5mm	23817372.5mm
